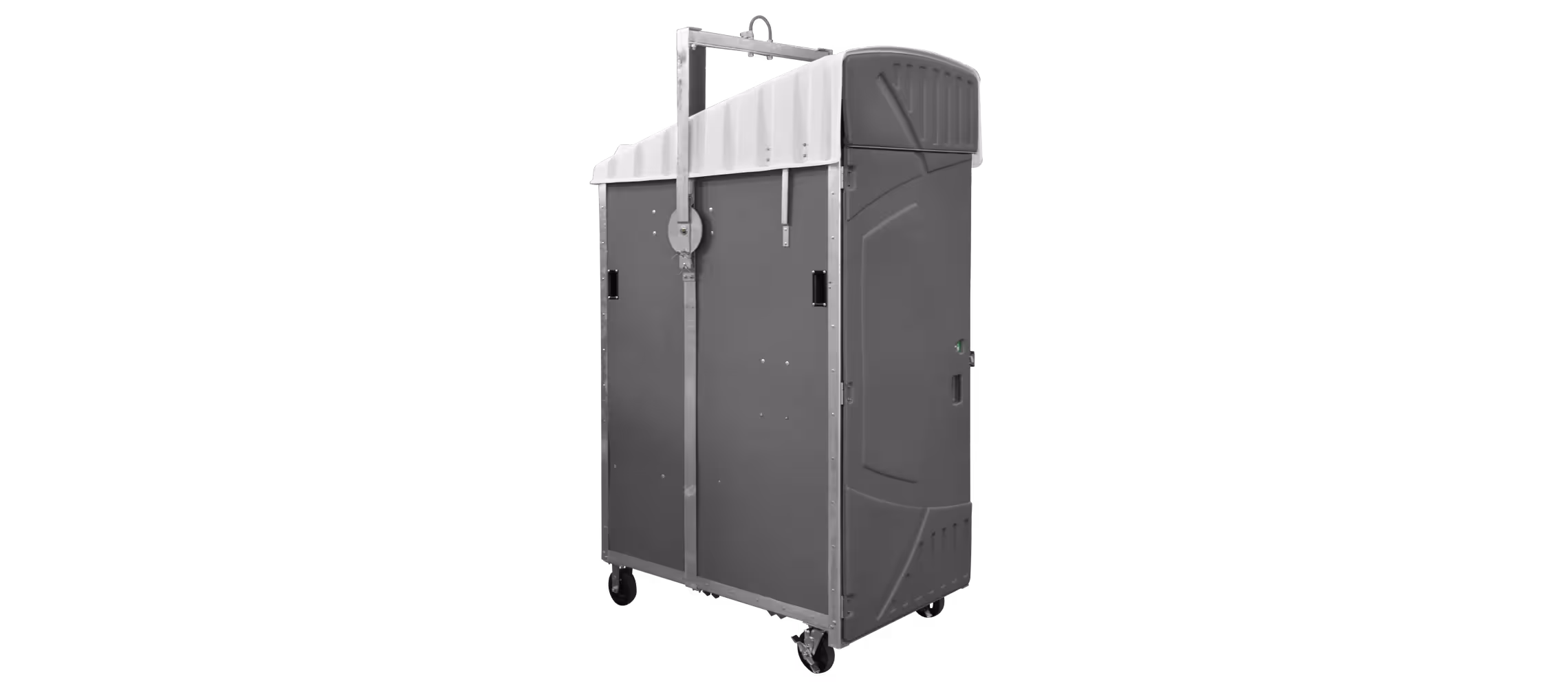

Highrise Overview

This restroom is built exclusively for the high rise construction market and offers end users and operators a unique set of features. The Highrise has been designed to be semi or fully private. Adding the roof makes it fully private and a sliding mechanism allows it to be lowered far enough to fit through standard door openings. For additional privacy the urinal is placed inside the restroom. Overall, the Highrise has a tremendous amount of interior space and privacy in situations where it was impossible to have before.

The Highrise is sized to go where other restrooms cannot. With the optional roof it is only 33.5 inches wide and 78.2 inches high. This allows the Highrise to be moved through halls and doorways to the place where workers need it most. The casters by Service Caster are sealed to prevent freeze up and can be greased for continued reliability. The frame and floor are made from galvanized metal to prevent damage while lifting and handling. This uniquely designed restroom fills the need for privacy, maneuverability, and dependability.

  • Fully or semi private
  • Internal, private urinal
  • Fits through door openings
  • Fits on freight elevators
  • Retractable roof (optional)
  • Sealed casters by Service Caster
  • 10 Year Limited Warranty


Proposition 65 for purchases in California

! WARNING: These products may contain chemicals known to the State of California to cause cancer and or/birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov

Highrise Flush Tanks


Western Hand Flush

The Western re-circulating flushing system is a popular option for customers since it can be installed quickly to easily upgrade any of Satellite’s standard, wheelchair accessible and many other portable restrooms into a flushing unit.

Learn More


Flapper Hand/Foot Flush

This unique fresh flush system features a plastic flapper bowl that hides waste from view and seals tight to reduce odor. Retrofit any of Satellite’s standard units and some specialty units into a flushing unit with a versatile flapper bowl.

Learn More

Highrise Additional Options


Optional roof provides complete privacy

Highrise Specifications

  • Height: 78” (1981 mm)
  • Width: 31.2” (792 mm)
  • Depth: 53” (1346 mm)
  • Tank Volume: 38 gal. (144L)
  • Weight: 257 lbs. (116 kg) — 307 lbs. (139 kg) (standard to full-feature unit.)


Exterior w/Roof

  • Height: 87.8” (2230 mm)
  • Width: 33.5” (851 mm)
  • Depth: 54” (1372 mm)



  • Height: 78” (1981 mm)
  • Width: 30.1” (764 mm)
  • Depth: 51.5” (1308 mm)

Highrise Download/Media

Call for more information: 1-800-883-1123
