MODELS / SPECIALTY / LAUNDRY TRAILER, 8-Station
MODEL: LAUNDRY | STYLE: LAUNDRY TRAILER | STATIONS: 8 | AVAILABLE INTERNATIONALLY: YES
Exterior
Floor Plan
Laundry 1
Laundry 2
Laundry 3
Laundry 4
Overview
Specifications
Download/Media

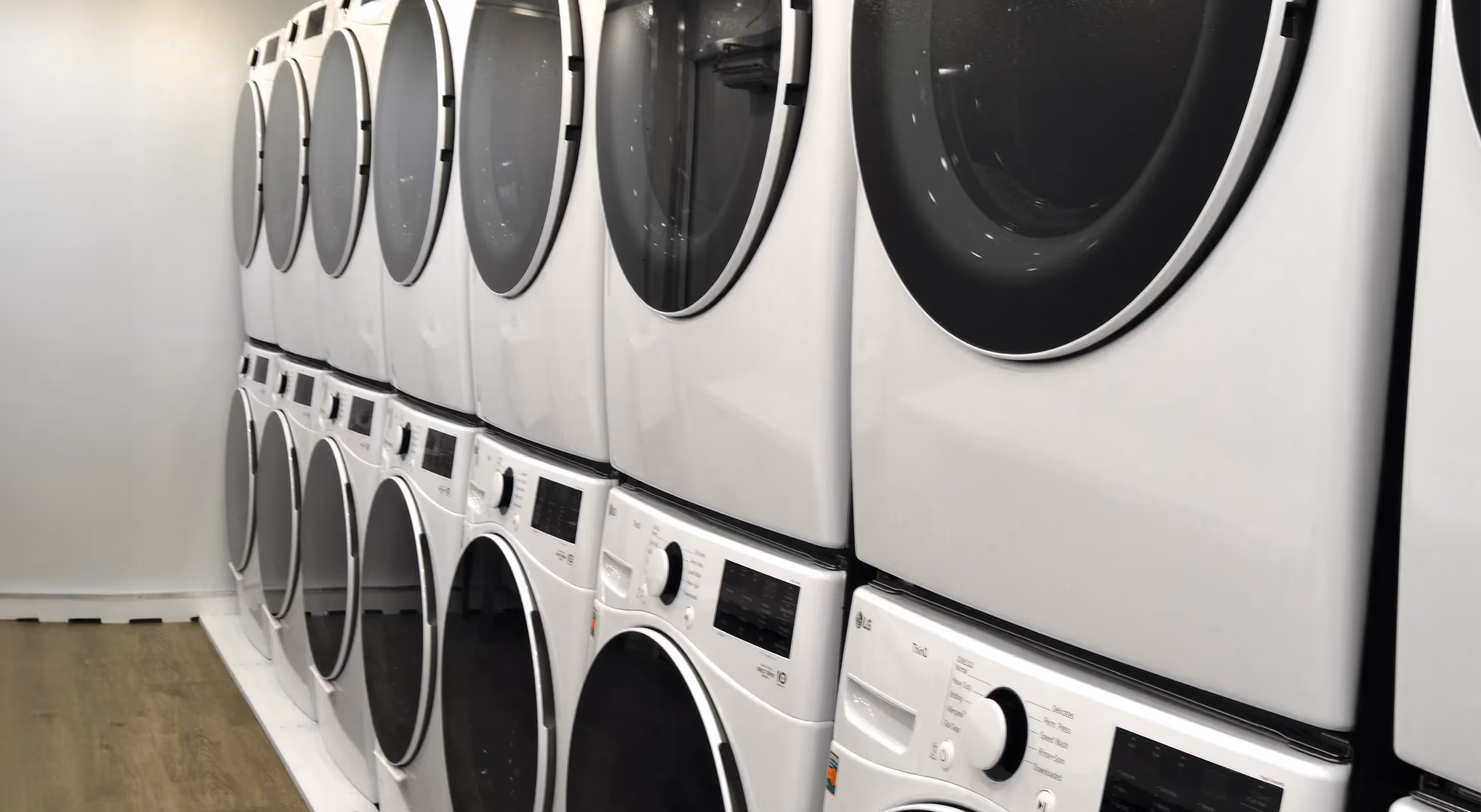

Satellite Suites would like to introduce the 25’ 8-Station Laundry Trailer. Built to accommodate large groups of service workers and people in disaster relief situations. Eight Samsung Stackable washer/dryer units, one folding stations and two laundry sinks outfit the trailer. The open floor plan allows for people to flow easily in and out of the trailer, maximizing the amount of productivity.
*Fresh water connection required, 200 gallon fresh and 950 gallon waste tank.
! WARNING: These products may contain chemicals known to the State of California to cause cancer and or/birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
The trailer is equipped with a 20,000 lb. coupler that can be adjusted to match the height of the vehicle hitch and has a clearly marked manual locking system.
Satellite Suites trailers feature a seamless Gel Coat exterior. Like the outside of a boat, the Gel Coat exterior has no seams or rivets that would potentially let water into the structure of the trailer. It is a very durable surface that requires little maintenance, is lightweight and will not dent or ding.
Satellite Suites exterior DOT light package is 100% LED, which enhances safety and greatly reduces maintenance costs.
The water connection is located on the curb side of the trailer and is accessed through an outer compartment. It is a ¾ inch garden hose connection with a pressure regulator that limits the pressure to down to approximately 40 psi. The ideal psi range is 40-60 psi. If the pressure from the water source exceeds 60 psi it should be regulated at the source. An incoming pressure gauge located in the service area indicates the amount of incoming water pressure.
Propane
Wheels
Water & Waste
Coupler 1
Coupler 2
Gel Coat
Lights
Marker Lights
Wall Connections
Folding Table
Wash Station
Washer & Dryer
